Evaporator (E-Series)

ID Greenhalgh evaporator is a high efficiency heat exchanger. Capacity design according to themost popular compressor sizes in this range. Fin and tub...

Category Details

Evaporator (E-Series)

ID Greenhalgh evaporator is a high efficiency heat exchanger. Capacity design according to themost popular compressor sizes in this range. Fin and tube design for maximizing the sendible capacity and minimizing the latent heat and frost losses in balance with a cost efficient heat transfer coefficiency. There are E2-series for medium or low temperature. Fin spacing can be made from 4.2mm to 6.0mm. Greenhalgh chooses only low specific energy consumption fans. Robust stainless steel electric heater with high isolation cable connections to meet UL-SA51 02 and CSALR1 8489 standards and ensure the safety of the equipment.
Download Catalog
Evaporator (E-Series)
Our Products

Evaporator (E-Series) Collection

E1-Series: Display Cooler

E1-Series: Display Cooler

Customizable product; choose your preferred materials. 200mm diameter with low noise and low energy consumption.

Download Catalog

Features & Specifications

Features:
Perfect use for: Soft drinks, Dairy products, Bakery, etc. Temperature ranges: SC2 (0°C to -8°C), SC3 (-8°C to -25°C). Refrigerant R404a with fin spacing 4.2mm - 6mm.
Specifications:
Test 909MP
Diameter 200mm
Fin Spacing 4.2mm - 6mm
Refrigerant R404a
Power Low Temp 0.54kW to 6.34kW
Temp Range Sc2 0°C to -8°C
Temp Range Sc3 -8°C to -25°C
Power Medium Temp 0.82kW to 9.71kW

Product Image

E1-Series: Display Cooler
E1-Series: Display Cooler
E2-Series: Cold Room

E2-Series: Cold Room

Customizable product; choose your preferred materials. 300mm to 350mm diameter with low noise and low energy consumption.

Download Catalog

Features & Specifications

Features:
Perfect use for: Meat, Fruit, Vegetable, etc. Temperature ranges: SC2 (0°C to -8°C), SC3 (-8°C to -25°C). Refrigerant R404a with fin spacing 4.2mm - 6mm.
Specifications:
Diameter 300mm to 350mm
Fin Spacing 4.2mm - 6mm
Refrigerant R404a
Power Low Temp 0.90kW to 15.6kW
Temp Range Sc2 0°C to -8°C
Temp Range Sc3 -8°C to -25°C
Power Medium Temp 1.46kW to 25.1kW

Product Image

E2-Series: Cold Room
E2-Series: Cold Room
E2-Series: Cold Room
E2-Series: Cold Room
E3-Series: Cold Room

E3-Series: Cold Room

Customizable product; choose your preferred materials. 500mm diameter with low noise and low energy consumption.

Download Catalog

Features & Specifications

Features:
Perfect use for: Meat, Fruit, Vegetable, etc. Temperature ranges: SC2 (0°C to -8°C), SC3 (-8°C to -25°C). Refrigerant R404a with fin spacing 4.2mm - 6mm.
Specifications:
Diameter 500mm
Fin Spacing 4.2mm - 6mm
Refrigerant R404a
Power Low Temp 6.11kW to 43.63kW
Temp Range Sc2 0°C to -8°C
Temp Range Sc3 -8°C to -25°C
Power Medium Temp 10.43kW to 71.39kW

Product Image

E3-Series: Cold Room
E3-Series: Cold Room
E3-Series: Cold Room
E3-Series: Cold Room

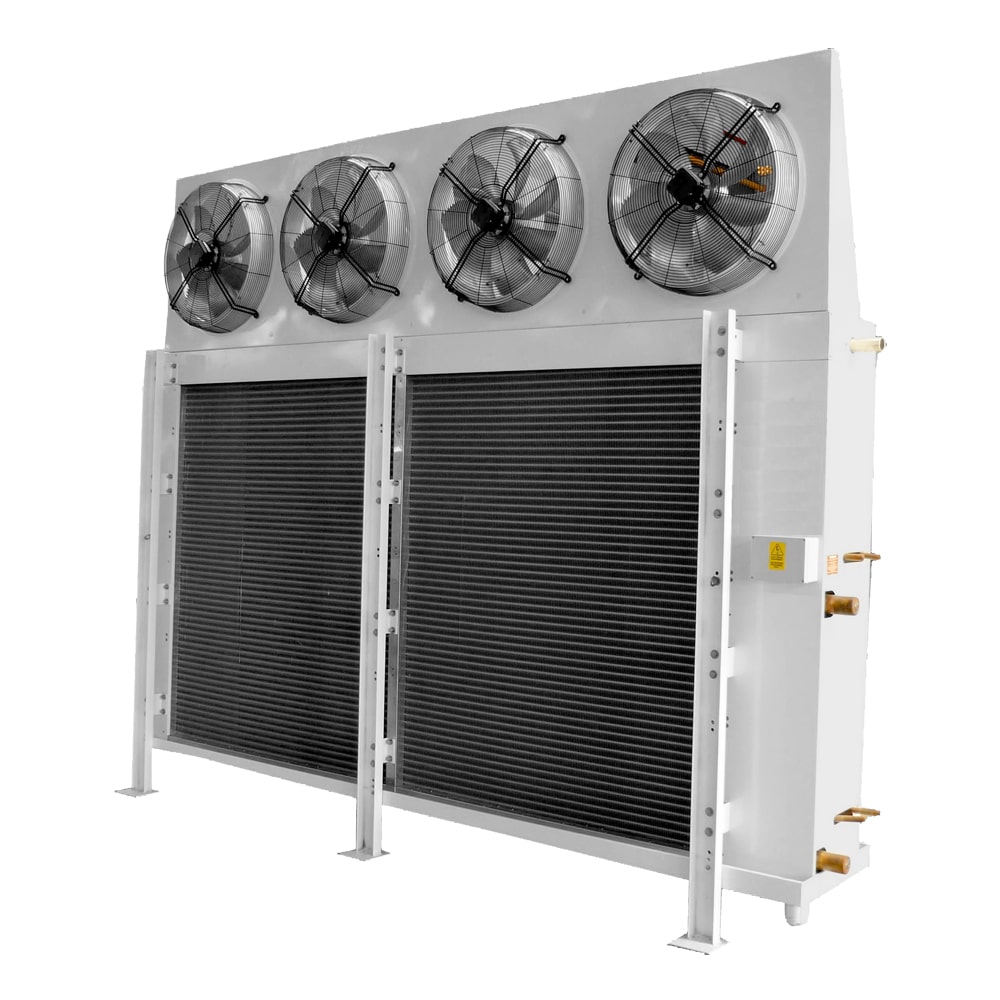

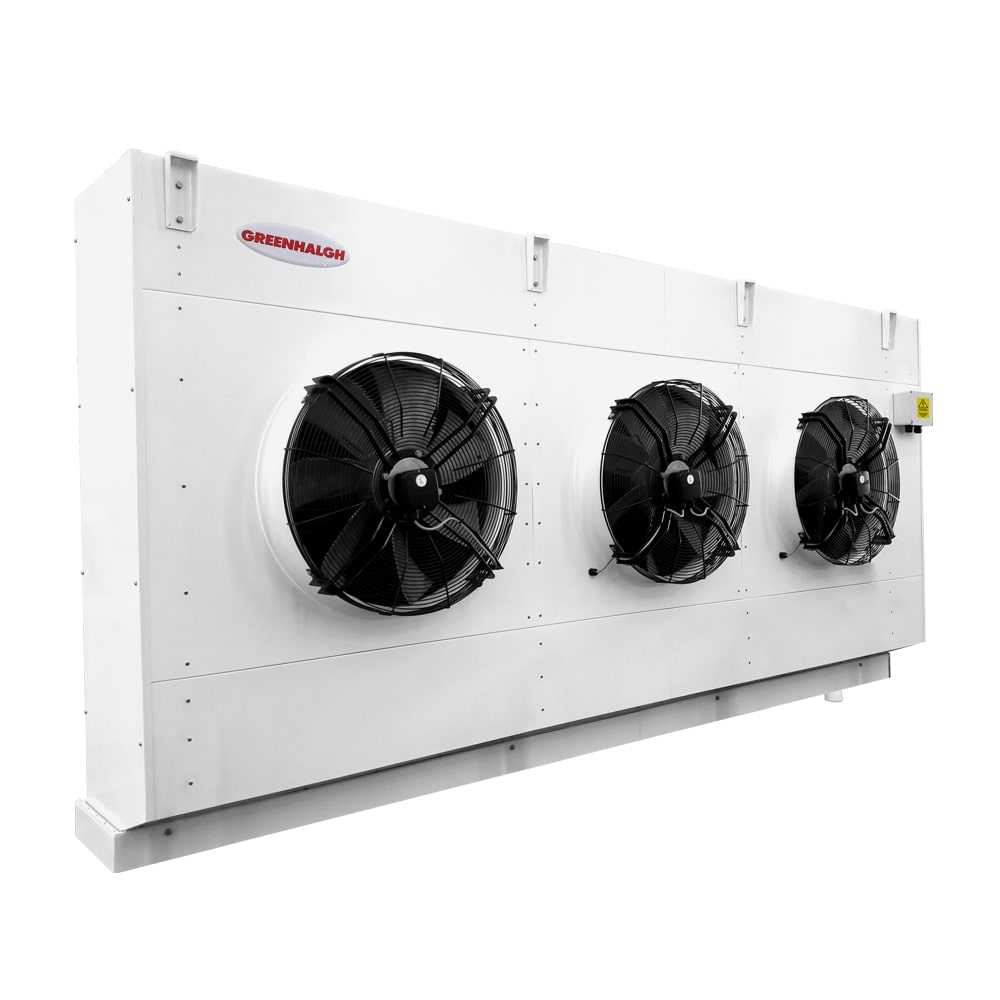

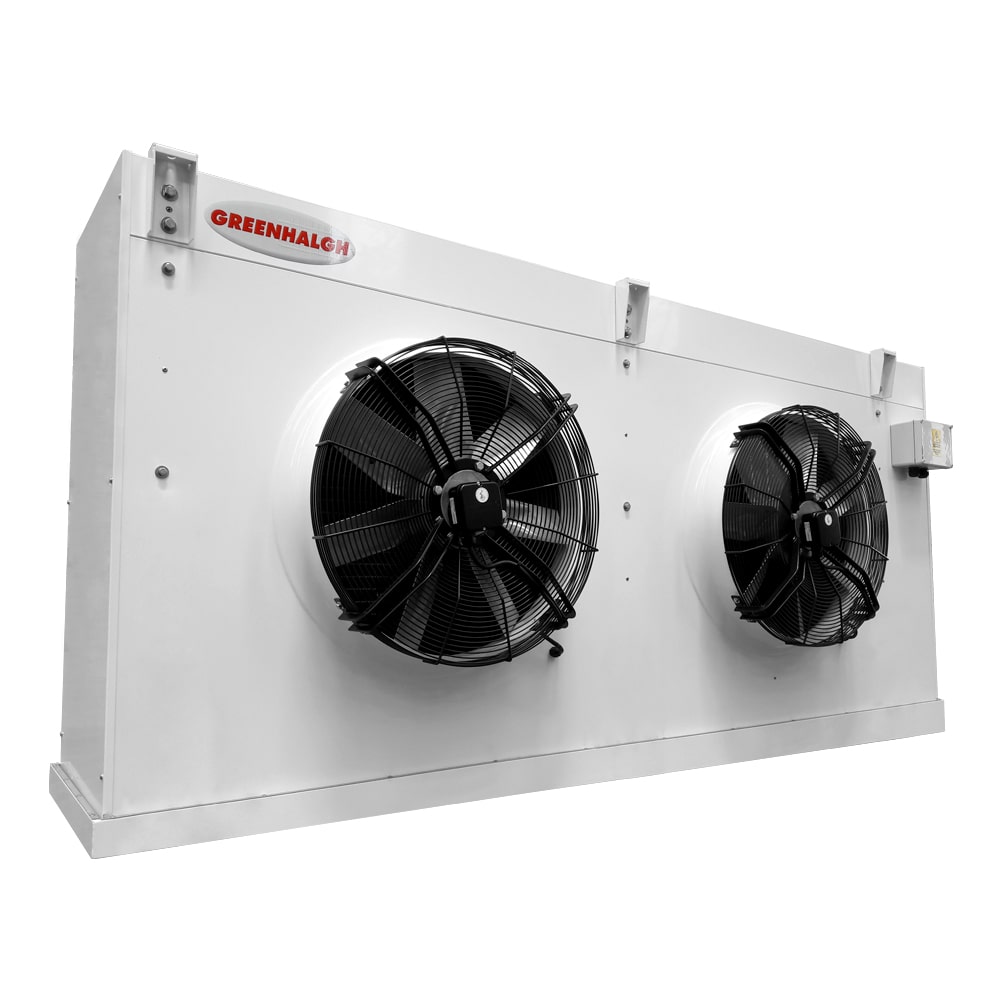

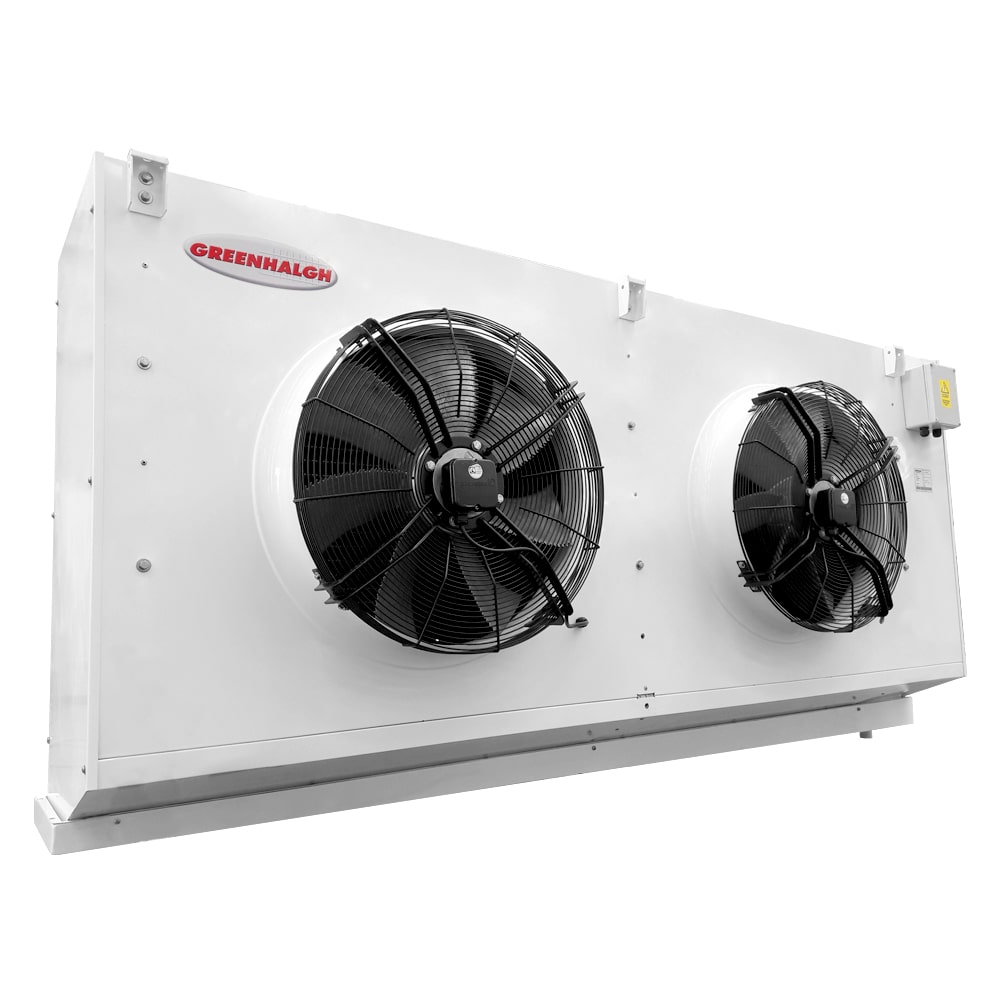

E4-Series: Air Blast Freezer

E4-Series: Air Blast Freezer

Customizable product; choose your preferred materials. 630mm to 800mm diameter with low noise and low energy consumption.

Download Catalog

Features & Specifications

Features:
Perfect use for: Seafood & Meat, etc. Temperature ranges: SC2 (0°C to -8°C), SC3 (-8°C to -25°C). Refrigerant R404a with fin spacing 4.2mm - 8mm.
Specifications:
Diameter 630mm to 800mm
Fin Spacing 4.2mm - 8mm
Refrigerant R404a
Power Low Temp 10.9kW to 128.5kW
Temp Range Sc2 0°C to -8°C
Temp Range Sc3 -8°C to -25°C
Power Medium Temp 21.4kW to 613.6kW

Product Image

E4-Series: Air Blast Freezer
E4-Series: Air Blast Freezer
E4-Series: Air Blast Freezer
E4-Series: Air Blast Freezer

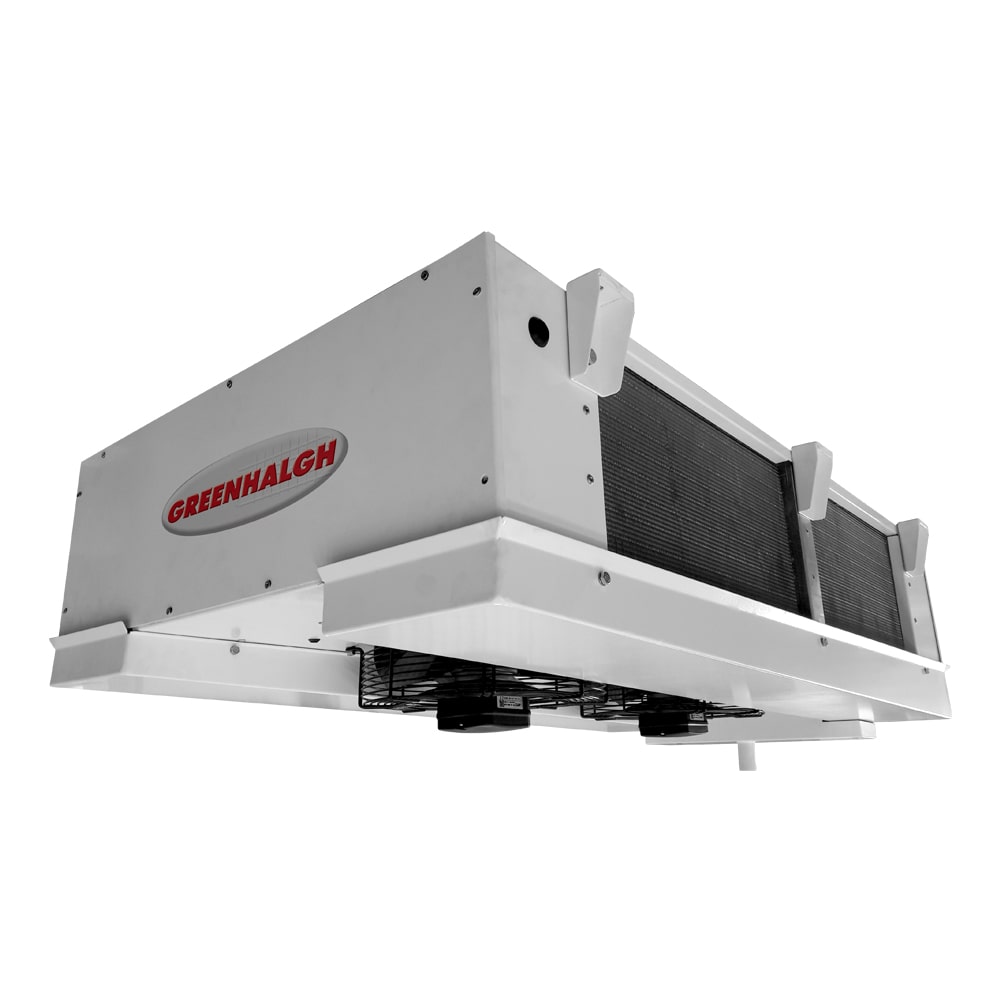

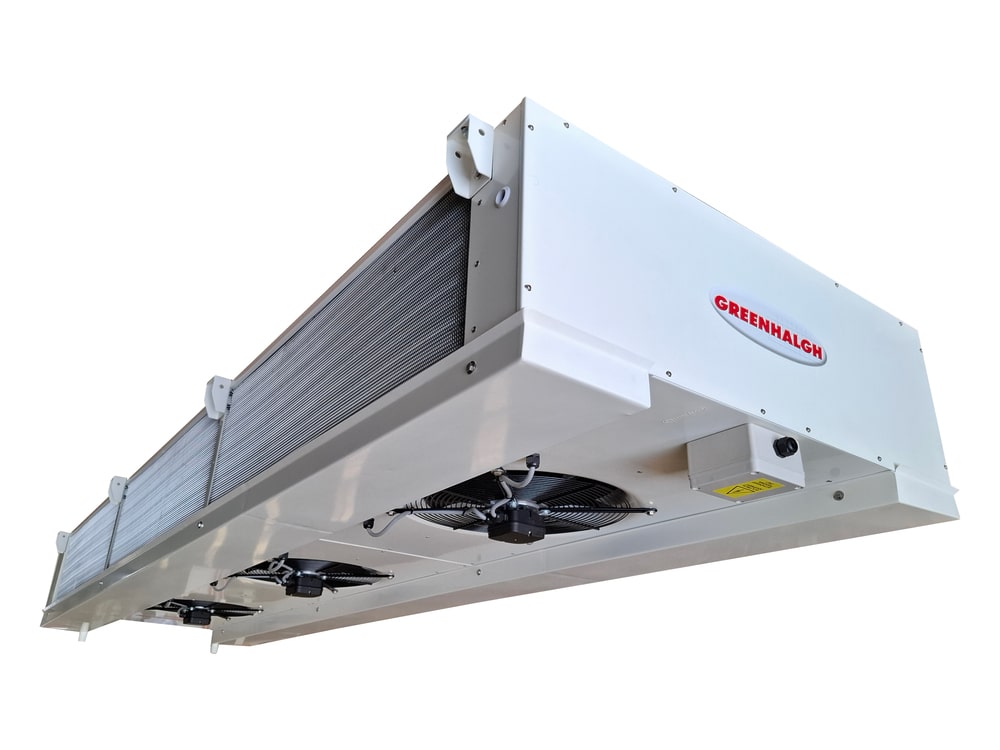

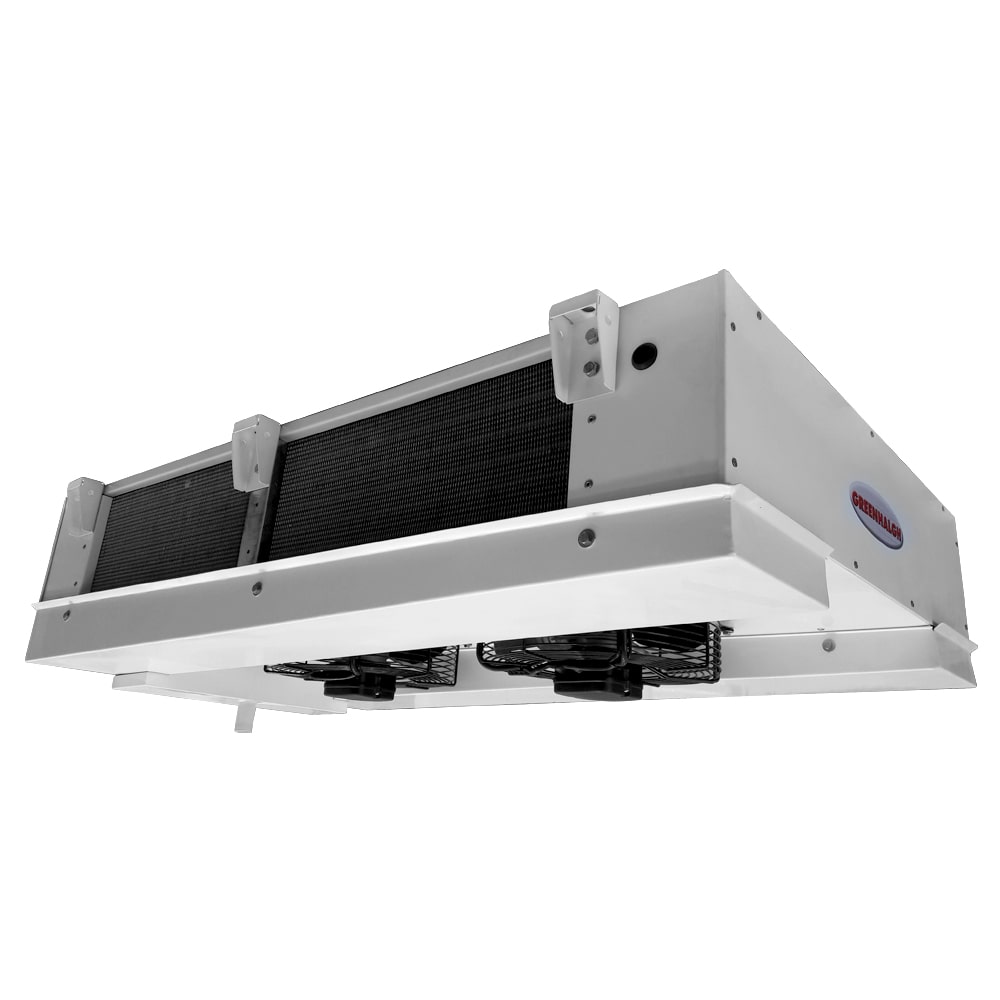

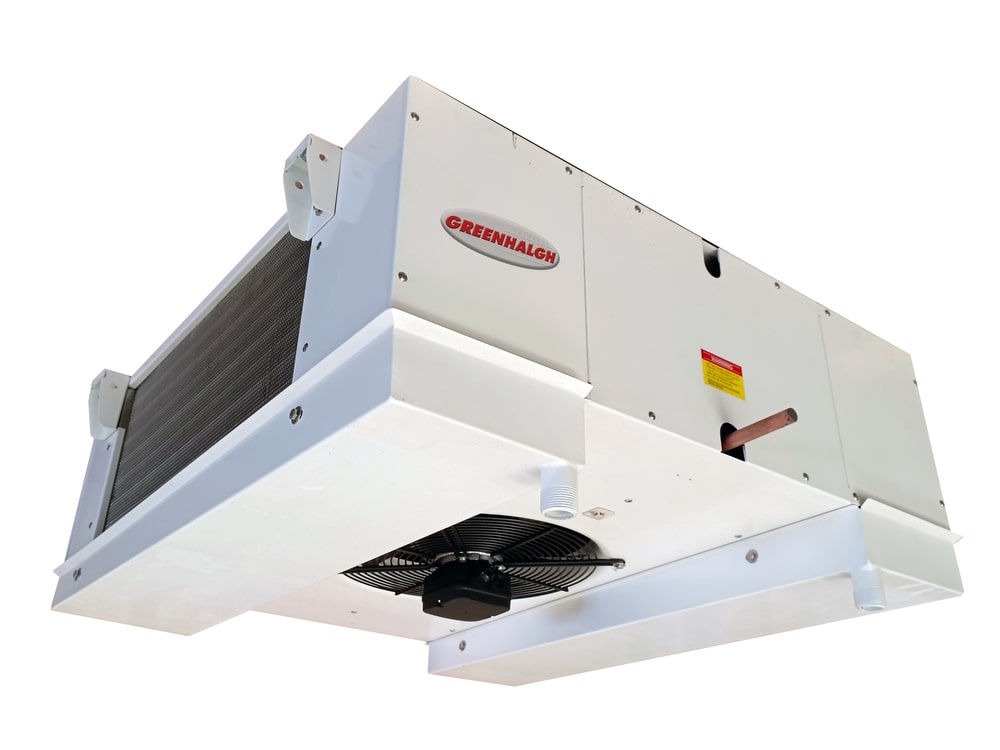

E5-Series: Process Room

E5-Series: Process Room

Customizable product; choose your preferred materials. 300mm to 500mm diameter with low noise and low energy consumption.

Download Catalog

Features & Specifications

Features:
Perfect use for: Food factory, etc. Temperature ranges: SC1 (10°C to 0°C), SC2 (0°C to -8°C). Refrigerant R404a with fin spacing 4.2mm - 8mm.
Specifications:
Diameter 300mm to 500mm
Fin Spacing 4.2mm - 8mm
Refrigerant R404a
Power Low Temp 10.9kW to 128.5kW
Temp Range Sc1 10°C to 0°C
Temp Range Sc2 0°C to -8°C
Power Medium Temp 21.4kW to 613.6kW

Product Image

E5-Series: Process Room
E5-Series: Process Room
E5-Series: Process Room
E5-Series: Process Room
